Cleco Pulse
Model#: 120PTHH304
Manufacturer: Cleco

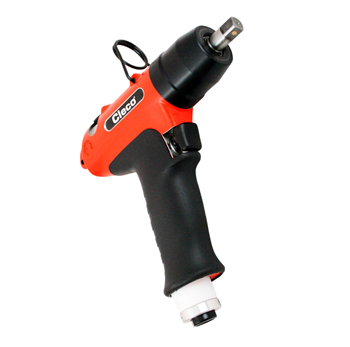

The pistol grip pulse nutsetter is a hydraulic pulse air shut-off air tool with trigger throttle and the motor governor equipped. The pulse nutsetter is reversible and has an external exhaust control, an external torque adjustment, a 1/4"" NPT air inlet, oil less blades, and a square drive. The Cleco pulse nutsetter offers a high degree of reliability, productivity, and operator comfort. The desired pre-set torque is sensed as hydraulic pressure in the patented Cooper Tools system. When the trigger is pulled, the motor is activated. As the torque increases, the hydraulic pressure increases. When the pre-set torque is reached, the hydraulic pressure activates the shutoff valve, thereby stopping the motor. A simple release of the trigger resets the tool for the next operation. The torque is set externally and stays set with the newly designed setscrew. The mechanical governor in the pulse tool maintains a controlled run-down speed, reducing the initial torque spikes, providing consistent tightening, and a greater torque accuracy. The pistol grip pulse tool comes with both a top and bottom air inlet. This feature allows the operator to set the tool up in the work area that best suits their needs. The double chamber hydraulic unit in the tool means low vibration levels which helps in preventing Cumulative Trauma Disorders (CTDs). The pulse nutsetter also has low torque reaction and noise levels, which make for greater operator comfort. The exclusive dual chamber in the air motor uses 50% less compressed air than conventional motors and also operates without lubrication, thereby affording reduced operating expenses.
